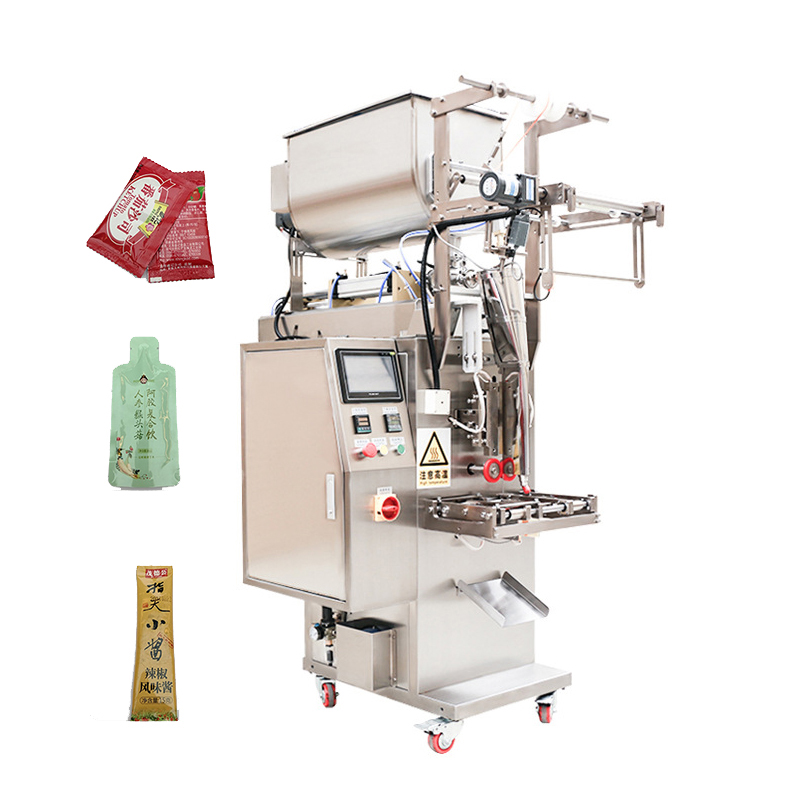

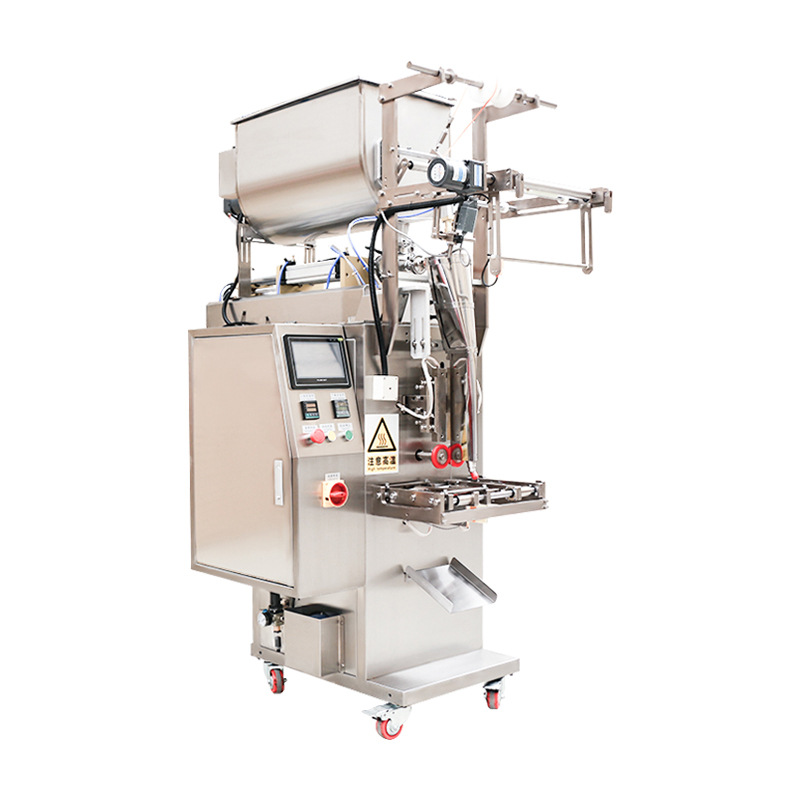

Vertical packaging machine

Categories: Multi-Function Packaging Machines

Price: $4285.00-12857.00

Brand: JULY

Minimum order quantity: 1 Pieces

Delivery time: 15 Day

1.automatic 2.16 years manufacturer 3.export to more than 30 countries and areas 4.with R&D team of 10 peoples 5.lifetime service support

Production efficiency: 30-60 bags/min (depending on the weight of the material)

Package weight: 1-200g(depending on material characteristics)

Bag width: 20mm-280mm

Bag length: 30mm-170mm

Packaging error: 0.2g(depending on material characteristics)

Control system: PLC controller + color touch screen

Sealing method: back sealing, three side sealing, four side sealing

Seal pattern: stripe, mesh, whiteboard

Applicable packaging materials: PP, PE, PVC, PS, EVA, PET, PVDC+PVC, OPP+ composite CPP, etc

Equipment material: stainless steel (carbon steel) frame

Power supply: 220v/50Hz/1.5kw

Air consumption: 0.5m3/min

Machine size (L.W.H) : 1050mm*710mm*1620mm

Packing machine selection device: inflation device exhaust device coding machine punching round corner feeding machine

Machine weight: 350kg
